From Docker to Kubernetes: DeepSeek Harness, Built-in Chromium, and DSH Plugin in Practice¶

After DeepSeek Harness was open-sourced, some people summarized it as "DeepSeek open-sourced a web application." That description overlooks the Agent Runtime behind the Web Surface: model adaptation, sessions, tools, permissions, workspace, sub-agents, plugins, and the headless entry point all share the same execution core. The Web is not just a chat page; it can be packaged as a Native App or deployed directly to a remote development machine or the cloud. Compared with repackaging a CLI Agent into a remote terminal and mobile entry point, it is naturally better suited for cross-device access.

This project first packages the official npm runtime into a reproducible Docker image, then deploys it to a Kubernetes 1.30.4 test cluster. Following the earlier approach of the OpenClaw and Chrome all-in-one image, it places Chromium, Xvfb, Openbox, noVNC, and DeepSeek Harness into the same OCI image, and implements the integration layer between Harness and the browser as a standalone @runzhliu/dsh-browser-desktop plugin.

This is not a "page opens, so deployment succeeded" demo. What is truly worth recording: the Agent Runtime simultaneously holds session state, a workspace, Shell/PTY subprocesses, model credentials, and code execution capabilities, so a traditional web application Deployment template cannot directly cover these boundaries. Testing also revealed that a deny-all NetworkPolicy blocks kubelet HTTP probes in the current Cilium environment, causing the already-started process to be killed by the liveness probe. Ultimately, an in-container loopback exec probe preserved network isolation and restored correct health checks.

The accompanying implementation is at runzhliu/deepseek-harness-docker. If you want to first understand image building, node-pty, EROFS, HOME/DSH_HOME, and Cordis Patch, read DeepSeek Harness Docker, Compose, and Helm Deployment in Practice first. To understand Cordis, Profile, Agent Loop, and event-sourced sessions, start with DeepSeek Harness GitHub Repository Deep Dive.

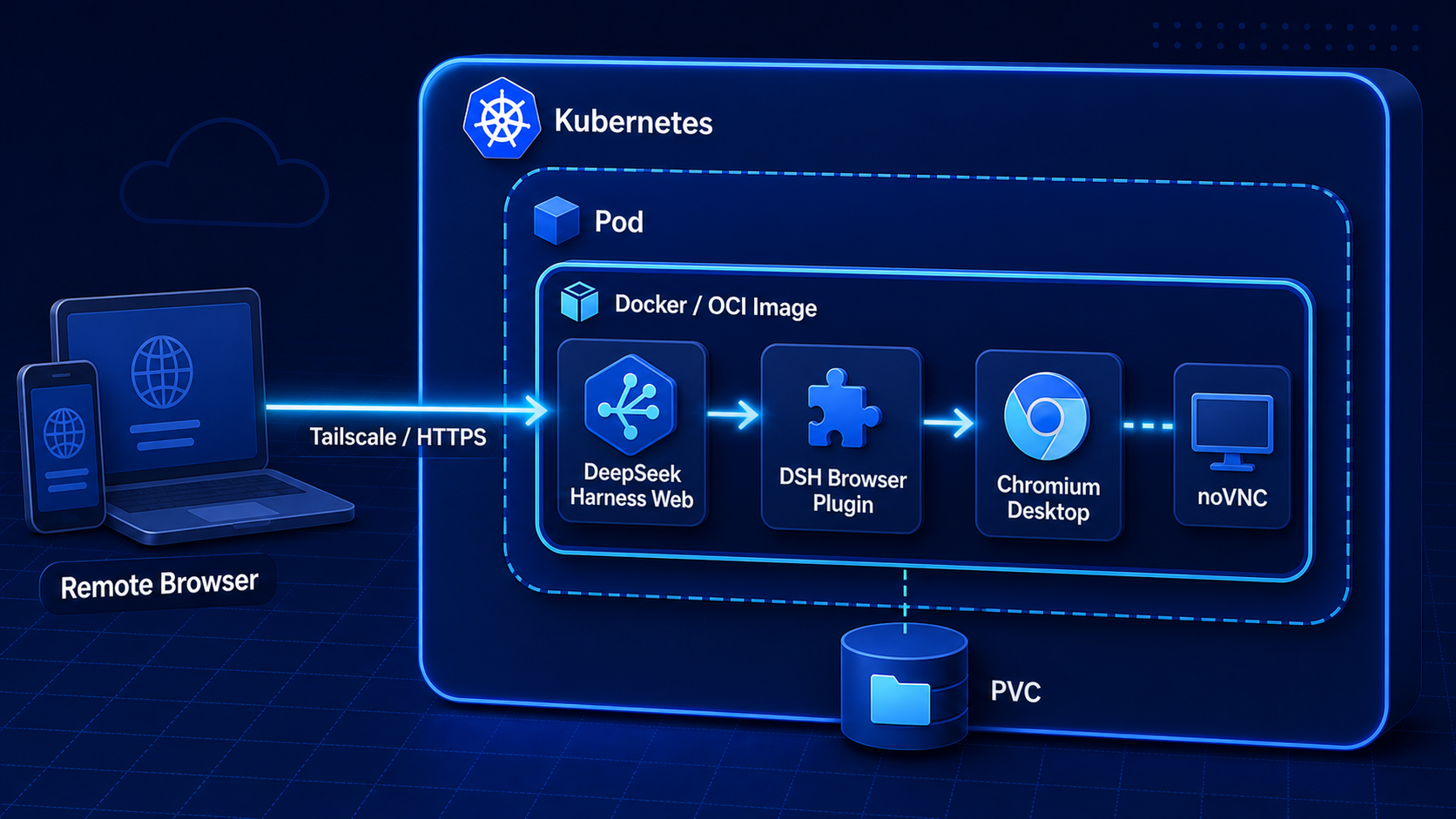

This diagram shows the current all-in-one boundary: a remote computer or phone accesses via Tailscale, port-forward, or a protected HTTPS entry point; Kubernetes manages the Pod; a single OCI image inside the Pod contains DeepSeek Harness Web, the Browser Plugin, and the Chromium desktop; PVC stores Harness state, browser Profile, and workspace. This is not Docker-in-Docker; Docker builds the image, and the test cluster actually starts the image with a CRI container runtime.

1. Experimental Conclusions First¶

The initial slim baseline without the Chromium desktop pulled about 190 MB from Docker Hub in 28.401 seconds. After fixing the probe, the new Pod startup log printed the Web address, and in-container dsh --version returned 0.1.0-rc.6. Accessing the homepage locally via the API Server proxy downloaded 12,109 Bytes of HTML in about 89 ms. After adding the full desktop stack, the local Docker image is about 2.46 GB, which buys a reproducible visual browser environment but also significantly increases image distribution and cold-start costs.

This round did not inject a model API Key, nor did it claim "Web is usable" as "Agent model calls have been verified." Before real production use, model Provider, Shell/PTY, file tools, permission approval, and sandbox behavior must be tested separately.

2. Why the Agent Runtime Is Worth Orchestrating with Kubernetes¶

npx @deepseek-ai/dsh web is already enough for an individual to quickly open a page. Putting it into Kubernetes is not about making a simple experience complex, but about turning a set of runtime constraints that tend to drift into declarative objects:

The most critical part is lifecycle layering. Images can be rebuilt, but Harness state must not be lost with them; the workspace can be replaced, and it should not be mixed with credentials, Profile, and sessions in the same anonymous directory.

3. Deployment Topology This Time¶

flowchart LR
  B[Local browser] -->|kubectl port-forward| A[Kubernetes API Server]
  A --> S[Headless Service :3080]
  S --> P[DeepSeek Harness StatefulSet Pod]
  P --> H[DSH_HOME PVC]
  P --> W[Workspace emptyDir / existing PVC]
  P --> T[tmpfs /tmp]
  NP[deny-all NetworkPolicy] -.blocks normal Pod inbound.-> P
  EP[loopback exec probe] -->|127.0.0.1:3080| P

No public entry point was deliberately created here. Harness Web currently lacks authentication, TLS, and Origin security boundaries suitable for direct exposure, and its backend can read and write files and start a Shell. Using port-forward through the API Server during testing confines the access surface to the operator's local machine.

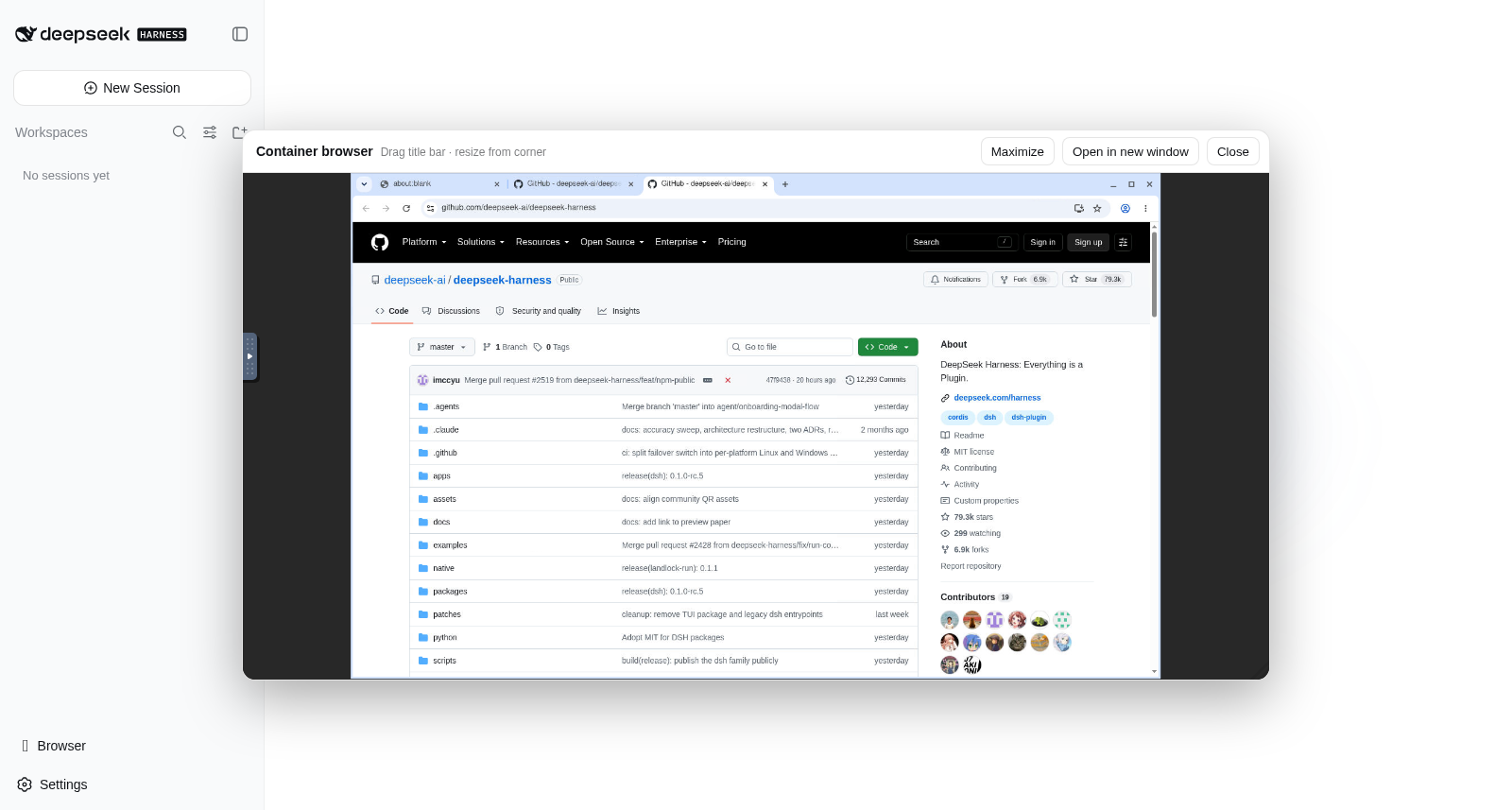

4. Building Chromium into the Image and Integrating It via the DSH Plugin¶

The current image is not simply adding an chromium package; it combines a complete, interactive desktop runtime chain:

DeepSeek Harness Web :3080
        │
        ├── @runzhliu/dsh-browser-desktop
        │       └── Chromium DevTools :9222
        │
        └── noVNC :6080
                └── websockify → x11vnc :5900
                                  └── Xvfb :99 + Openbox + Chromium

The Dockerfile installs Chromium and desktop components using Debian native-architecture packages and adds Noto CJK fonts, so both linux/amd64 and linux/arm64 can build native images. Compose configures 1 GiB /dev/shm for Chromium; the launcher adds --no-sandbox only to the browser process, while the container as a whole retains cap_drop: ALL and no-new-privileges.

deepseek-harness-entrypoint is responsible for preparing the plugin, starting Xvfb/Openbox, x11vnc, websockify/noVNC, Chromium, and DSH, and uniformly handling signals and subprocess exit. Chromium exposes a DevTools Endpoint on 9222 reachable only from the container loopback; the entry script automatically restarts it after abnormal exit. The browser Profile is placed in /home/node/.dsh/chrome-profile and persisted together with Harness state.

@runzhliu/dsh-browser-desktop@0.1.0 is a standalone DSH Plugin, not an iframe hardcoded into the Web page. It adds an entry point through sidebar.footer.action, displays a movable, resizable, and maximizable panel through shell.overlay, and registers the browser_open Agent tool. When the user asks to "open a certain address with the browser," the Host side creates a tab via CDP, and the Web Client then automatically expands the visual desktop in the same container.

The plugin can be packaged and installed independently:

npm pack ./plugins/dsh-browser-desktop --pack-destination /tmp
dsh plugin --profile web add \
  /tmp/runzhliu-dsh-browser-desktop-0.1.0.tgz

The plugin is only responsible for Harness Host/WebUI integration and does not separately install Chromium, Xvfb, or noVNC; the Docker image in the repository is the complete reference runtime. This layering lets other DSH environments reuse the plugin and avoids mixing UI integration and desktop process management into one inseparable startup script.

4.1 Tailscale and Mobile Voice Entry Point¶

One value of the Web Surface is cross-device access. A practical personal scenario: the project and DSH stay on a development machine or test cluster at home, exposing only a controlled entry point through the Tailscale Tailnet; while away, the user opens DSH in a mobile browser, enters modification requirements by voice, lets the Agent operate the mounted /workspace, and then views the page and verifies results through the built-in Chromium.

This does not mean ports 3080 and 6080 can be exposed publicly. The reference implementation's noVNC has no separate authentication, and DSH can access Shell, files, and model credentials, so at minimum Tailnet identity and ACLs, minimal port exposure, a controlled HTTPS entry point, and credential isolation are required. Tailscale provides private connectivity and an identity foundation; it does not automatically replace application authorization and the Agent Sandbox.

5. Why StatefulSet Instead of a Multi-Replica Deployment¶

Harness Profile, model settings, credential references, session events, and domain storage live in $DSH_HOME. The Web Surface is also closer to a single-user development entry point than to a stateless service that already has shared session coordination and multi-tenant identity.

Therefore, this deployment uses a single StatefulSet replica:

• Pod name and state volume binding are stable;
• The same $DSH_HOME is remounted after Pod recreation;
• PVC is retained by default on Helm uninstall or scale-down;
• Horizontal scaling is not used to fake high availability.

A single replica is not high availability. This PVC is also local LVM, so recovery after a node failure is constrained by local volume topology. For cross-node recovery, storage that supports the corresponding topology and failure semantics would be needed, and Harness's own contract for concurrent access and migration would need to be verified.

6. Minimal Helm Configuration¶

The test cluster only covers public images and an RWO StorageClass, with no credentials written into values:

image:
  repository: runzhliu/deepseek-harness
  tag: 0.1.0-rc.6
  pullPolicy: IfNotPresent

persistence:
  storageClass: <RWO_STORAGE_CLASS>
  size: 5Gi

networkPolicy:
  enabled: true
  ingress: []

Installation command:

helm --kube-context <TEST_CONTEXT> upgrade --install deepseek-harness \
  charts/deepseek-harness \
  --namespace deepseek-harness \
  --create-namespace \
  -f values-test.yaml \
  --wait \
  --timeout 5m

The Chart also sets the following security defaults:

• automountServiceAccountToken: false;
• UID/GID 1000 and runAsNonRoot: true;
• RuntimeDefault seccomp;
• Drop all Linux capabilities;
• allowPrivilegeEscalation: false;
• Read-only root filesystem;
• /tmp uses a size-limited memory emptyDir.

7. The First Real Problem: NetworkPolicy Blocked the Probes Too¶

On the first installation, the image, PVC, and Web process were all normal:

dsh web: http://127.0.0.1:3080 (LAN: http://<POD_IP>:3080)

But the Pod could not become Ready, and Events kept appearing:

Readiness probe failed: dial tcp <POD_IP>:3080: i/o timeout
Liveness probe failed: context deadline exceeded
Container failed liveness probe, will be restarted

The old Pod accumulated 6 restarts in total. The problem was not Node.js, image architecture, PVC permissions, or Harness startup, but the interaction of the following configuration:

1. NetworkPolicy sets ingress: [] for the Harness Pod;
2. Cilium enforces host-to-Pod inbound policy in this cluster;
3. kubelet initiates the httpGet Probe using the Pod IP;
4. The Web is already listening, but probe traffic is dropped by the policy before entering the container.

Attempting to allow the node CIDR with only the standard NetworkPolicy ipBlock did not match in this host-probe path. Simply disabling the NetworkPolicy would restore the probes but would re-expose the unauthenticated code execution interface to other Pods in the cluster, which is not a reasonable fix.

8. The Correct Fix: In-Container Loopback Exec Probe¶

What the health check really needs to verify is the Web process in this container; it does not need to traverse the Pod network. Therefore, readiness/liveness was changed to an in-container Node.js fetch:

livenessProbe:
  exec:
    command:
      - node
      - -e
      - >-
        fetch('http://127.0.0.1:3080/').then((response) =>
        process.exit(response.ok ? 0 : 1)).catch(() => process.exit(1))
  initialDelaySeconds: 20
  periodSeconds: 20
  timeoutSeconds: 3

readinessProbe:
  exec:
    command:
      - node
      - -e
      - >-
        fetch('http://127.0.0.1:3080/').then((response) =>
        process.exit(response.ok ? 0 : 1)).catch(() => process.exit(1))
  initialDelaySeconds: 5
  periodSeconds: 10
  timeoutSeconds: 3

This change has three effects:

• It still checks real HTTP status rather than only checking that the Node process exists;
• It does not require adding an inbound exception for kubelet on 3080;
• The deny-all NetworkPolicy can continue to be enforced.

The StatefulSet was in the OrderedReady update flow at the time, and the old Pod had never become Ready, so the template update did not trigger an immediate replacement. After deleting the only test Pod, the controller rebuilt it according to the new revision and remounted the original PVC; the new Pod eventually 1/1 Ready, with a restart count of 0.

9. Acceptance cannot rely on the homepage alone¶

First check the controller, Endpoint, PVC, and policies:

kubectl --context <TEST_CONTEXT> -n deepseek-harness \
  get pod,statefulset,service,endpoints,pvc,networkpolicy -o wide

This run's results: StatefulSet 1/1, Pod Running/Ready, Endpoint pointing to 3080, PVC is Bound, and the NetworkPolicy still selects only the Harness Pod with no ingress rules.

Next, verify the version and write boundaries:

kubectl --context <TEST_CONTEXT> -n deepseek-harness \
  exec deepseek-harness-0 -- sh -lc '
    id
    dsh --version
    test -w /workspace && echo workspace-writable
    test -w /home/node/.dsh && echo dsh-home-writable
    test ! -w / && echo root-not-writable
  '

The measured output shows UID/GID 1000, DSH 0.1.0-rc.6, with the two mounted directories writable while the root directory is not.

Finally, access from the operator's local machine:

kubectl --context <TEST_CONTEXT> -n deepseek-harness \
  port-forward service/deepseek-harness 3080:3080

curl --fail http://127.0.0.1:3080/

The homepage returns HTTP 200. Do not change the Service to NodePort or add a public Ingress just to avoid running one port-forward command.

10. What Kubernetes solves, and what it does not¶

This experiment has demonstrated that Kubernetes can manage Harness's image versions, single-instance lifecycle, stateful volumes, health checks, network ingress, and security context. It has not yet demonstrated the following capabilities:

• Correctness and failover of model providers;
• Complete behavior of Harness tool approval and the Linux Sandbox on the target kernel;
• Multi-user identity, authorization, quotas, and auditing;
• Multi-replica shared Sessions or Workspaces;
• Cross-node state recovery after node failure;
• Strong isolation when running untrusted code.

Containers and Kubernetes limit which host resources a process can see; Harness's own permission system limits which tools the Agent can invoke. To execute untrusted code, you still need to evaluate gVisor, Kata, microVMs, standalone credential proxies, and controlled outbound networking. A Pod using a non-root user and a read-only root filesystem should not be described as a complete multi-tenant Agent Sandbox.

11. From OpenClaw to DeepSeek Harness: the point is not "putting it in a Pod"¶

More and more Agent projects are beginning to carry a Shell, browser, filesystem, plugins, and long-lived sessions. They are no longer just a web page that calls a model API, but a Runtime with state, permissions, and an execution environment.

Docker's value is turning dependencies, versions, and startup contracts into executable installation documentation; Kubernetes's value is continuing to manage the state, resources, identity, networking, and lifecycle of these Runtimes. What is truly worth reusing is not a YAML file that "just runs," but the following set of clear boundaries:

Image handles version and runtime dependencies
StatefulSet handles single-instance lifecycle
DSH_HOME PVC handles Harness state
Workspace Volume handles user code
Secret handles Provider credentials
NetworkPolicy handles access surface
Probe handles real health status
Stronger RuntimeClass handles untrusted execution isolation

镜像负责版本与运行依赖
StatefulSet 负责单实例生命周期
DSH_HOME PVC 负责 Harness 状态
Workspace Volume 负责用户代码
Secret 负责 Provider 凭据
NetworkPolicy 负责访问面
Probe 负责真实健康状态
更强 RuntimeClass 负责不可信执行隔离

For temporary personal local experimentation, npx or Docker Compose remains the preferred choice. Kubernetes only begins to show its value when you need team reproducibility, persistence, resource governance, version upgrades, and security boundaries. Orchestration is not the goal; turning the implicit assumptions of the Agent Runtime into an observable, upgradeable, recoverable contract is the goal.
